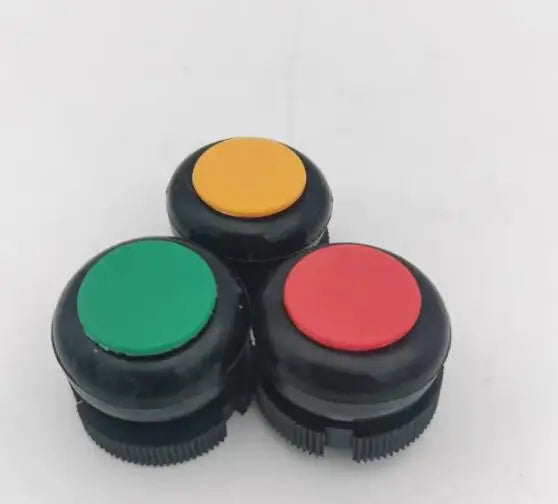

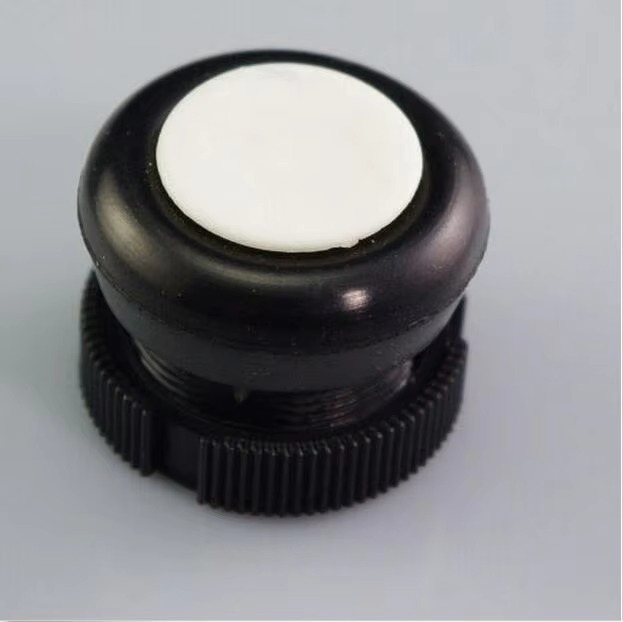

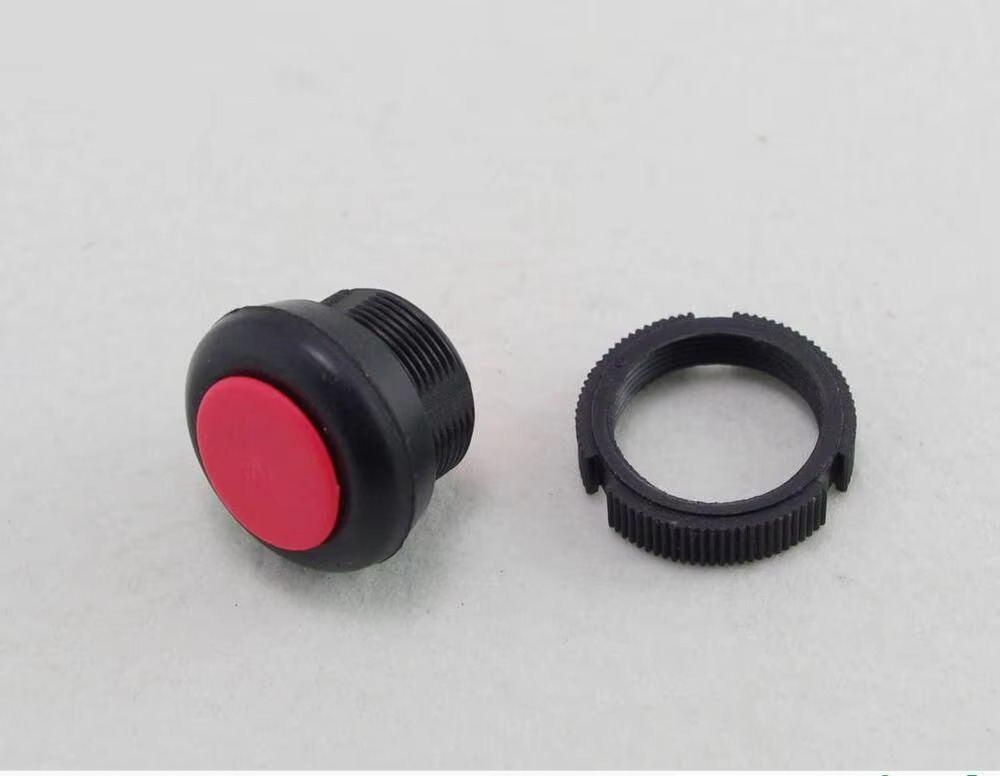

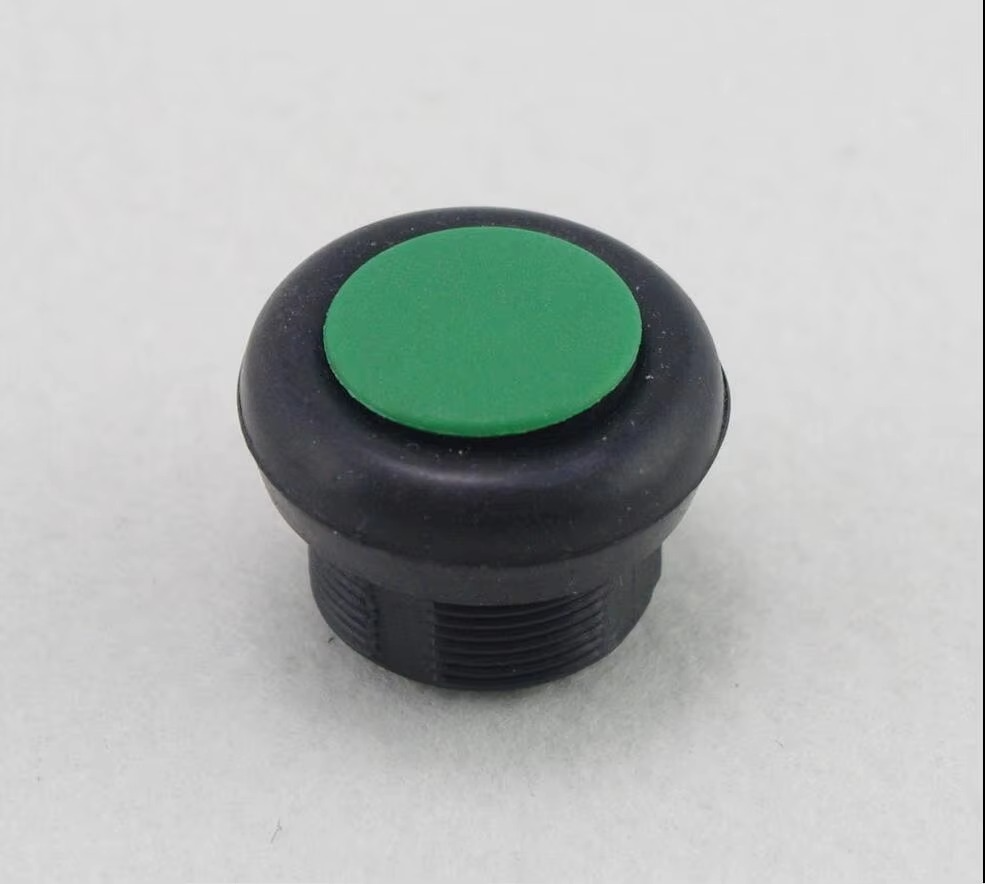

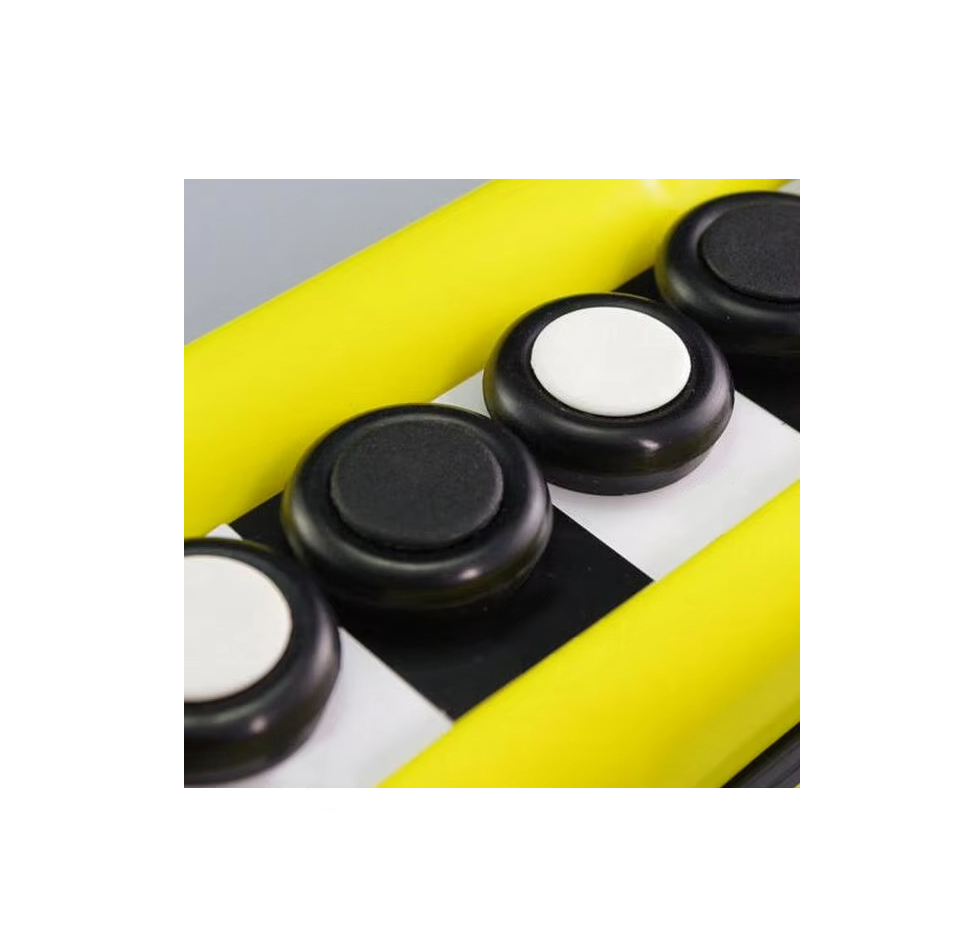

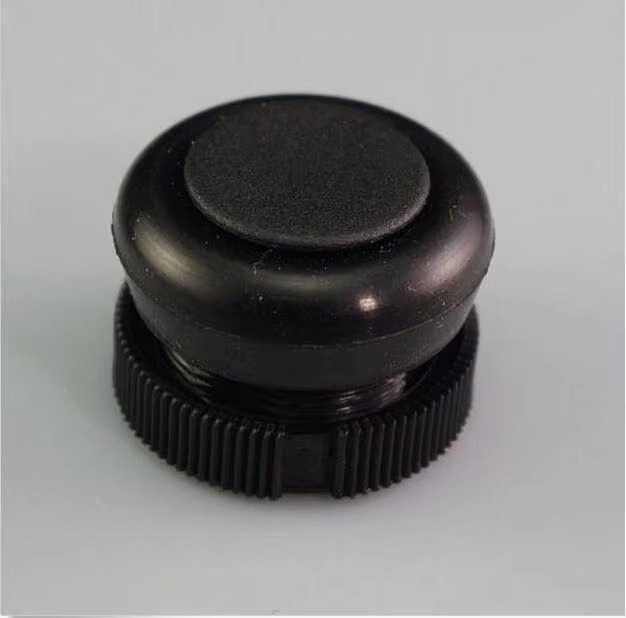

Head for push button, Harmony XAC, plastic, booted, spring return - Black, Red, Green & White
Main Range of product Harmony XAC Product or component type Head for push-button Component name XACA Complementary Marking Unmarked Operator additional information Booted Cap/operator or lens colour Black, Red, Green & White Product compatibility XACA.. Mounting location Front of enclosure Sale per indivisible quantity 10 Standards CSA C22.2 No 14 IEC 60947-5-1 IEC 60204-32 UL 508 Ambient air temperature for operation -25…70 °C Ambient air temperature for storage -40…70 °C Vibration resistance 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 Shock resistance 100 gn conforming to IEC 60068-2-27 Overvoltage category Class II conforming to IEC 61140 IP degree of protection IP65 conforming to IEC 60529 IK degree of protection IK08 conforming to IEC 62262 Net weight 0.01 kg
