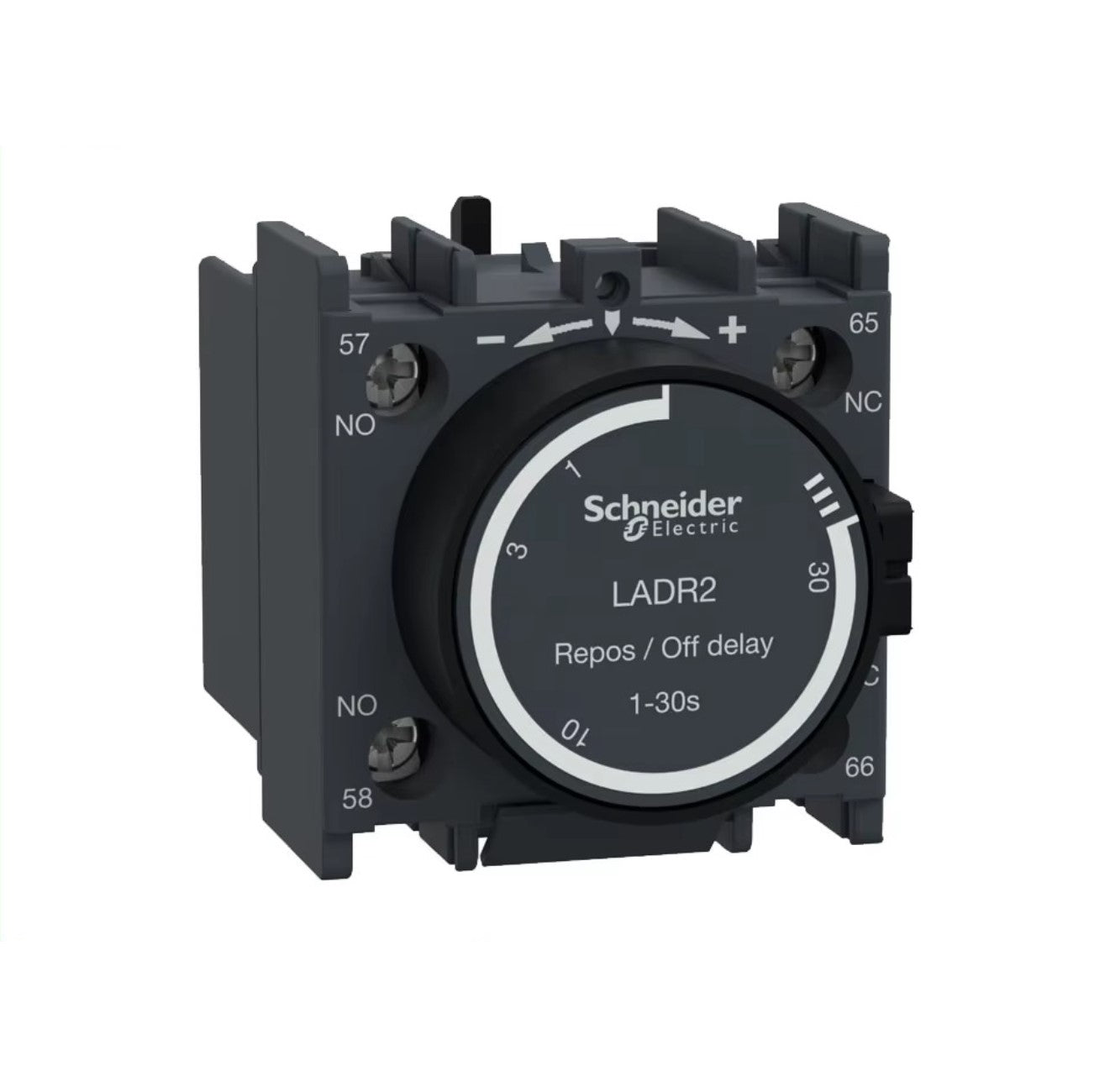

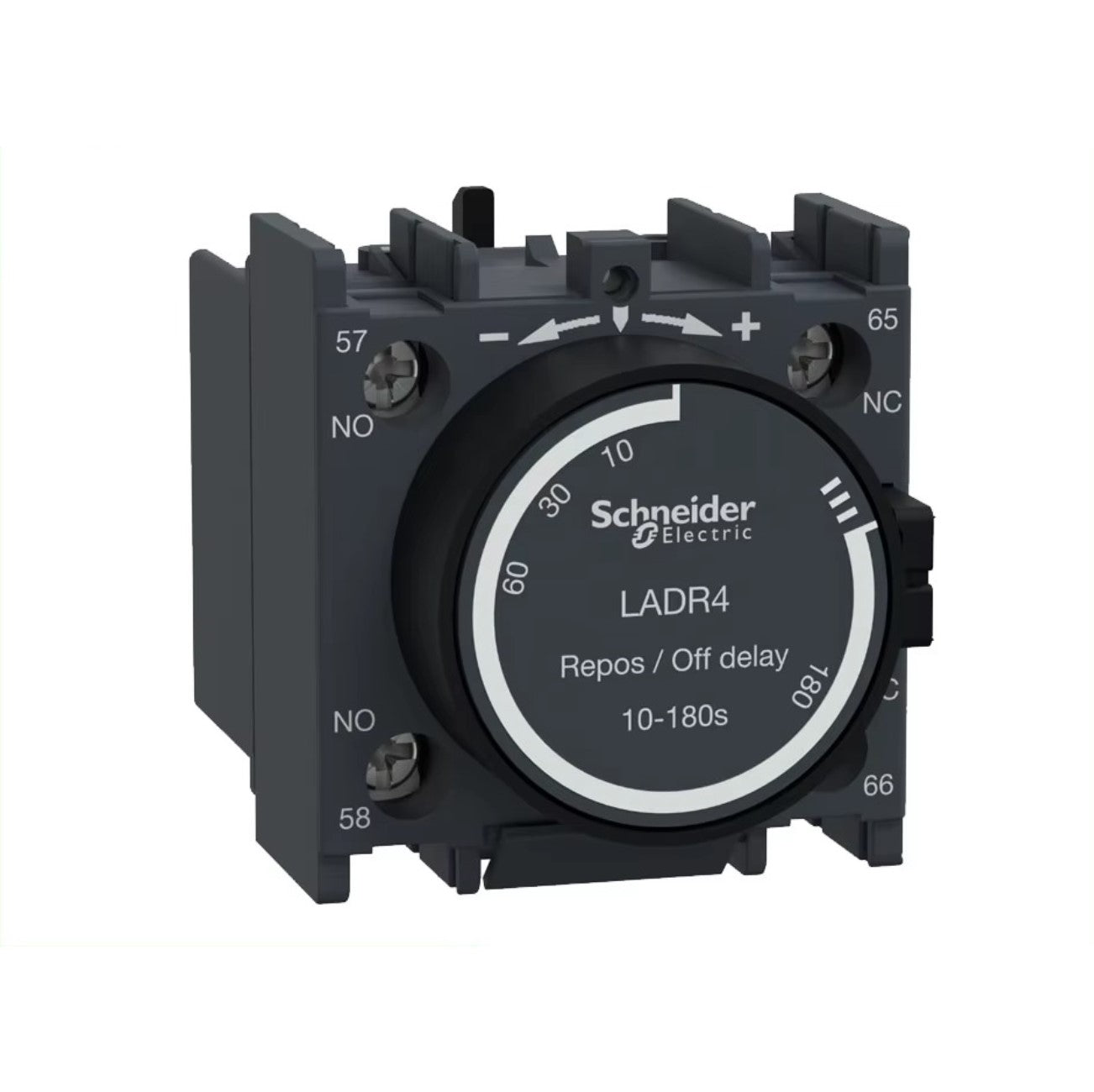

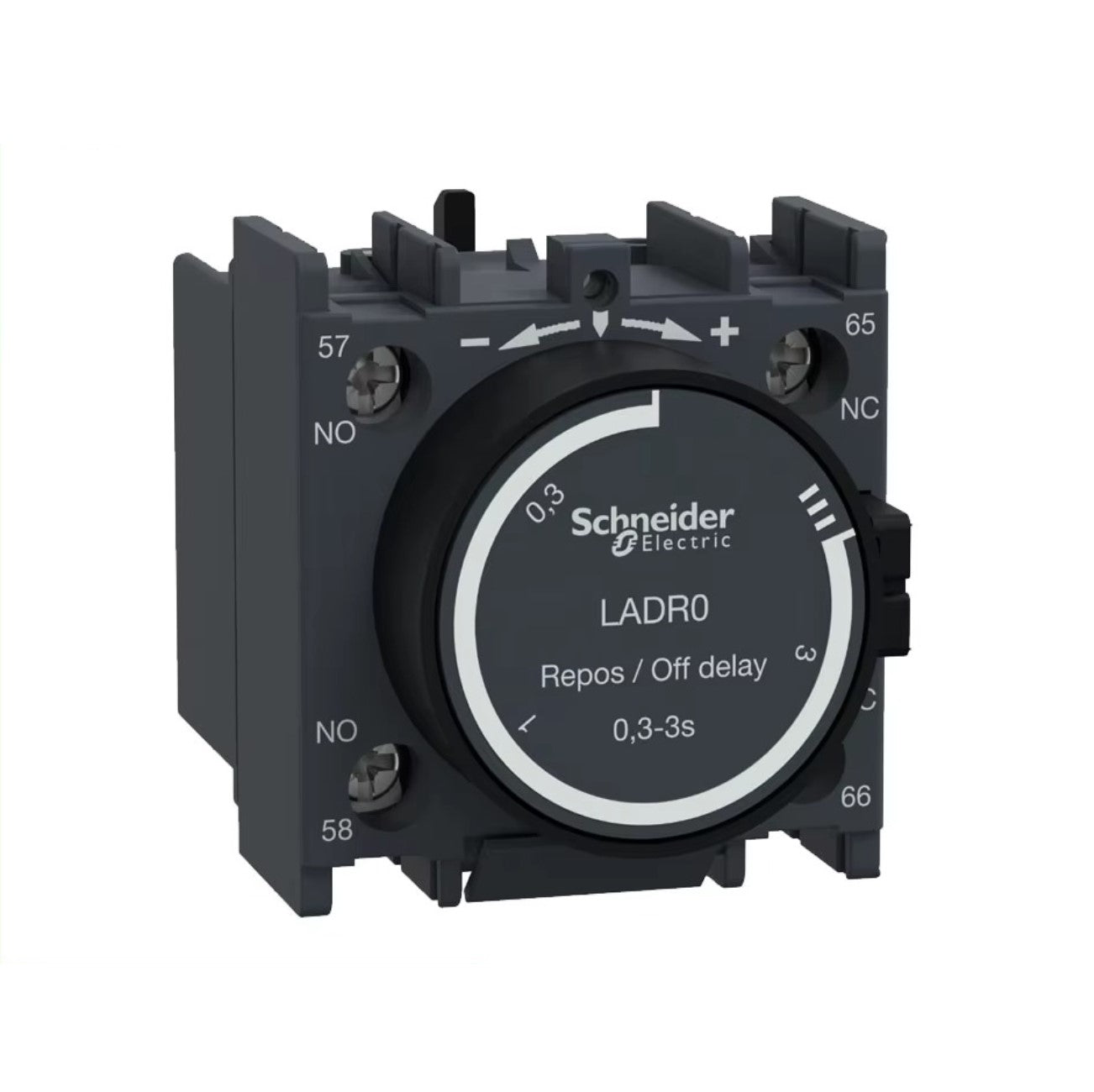

Time delay Auxiliary Contact Block, TeSys D, TeSys Deca, 1NO + 1NC, off delay 0.3-3s, 1-30s or 10-180s, front, screw clamp terminals
Main Range TeSys TeSys Deca Product name TeSys Deca Product or component type Time delay auxiliary contact block Range compatibility TeSys Deca CAD TeSys Deca LC1D TeSys F LC1F TeSys F CR1F Mounting location Front Pole contact composition 1 NO + 1 NC Contacts operation Time delay Timer type Off delay Time delay range: 0.3-3s, 1-30s or 10-180s [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1 600 V conforming to UL 60947-5-1 600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) Standards EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 EN 50012 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ Product certifications IECEE CB Scheme UL CSA CCC EAC UKCA Complementary Irms rated making capacity 140 A at <= 690 V AC conforming to IEC 60947-5-1 250 A at <= 690 V DC conforming to IEC 60947-5-1 Permissible short-time rating 100 A 60 °C 1 s 120 A 60 °C 500 ms 140 A 60 °C 100 ms
