Schneider LC1D products:

The contactor is of protective type, and the action structure is of direct action type. The contact is of double breakpoints
It features small size, light weight, low power consumption, long service life, safety and reliability

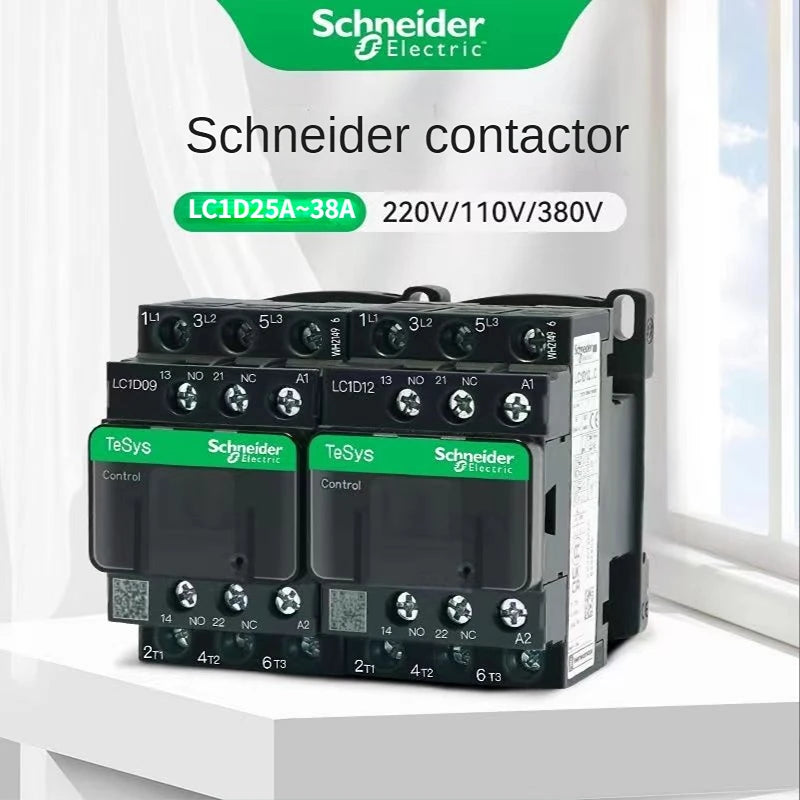

Contactors can be used to form mechanical reversible interlocking magnetic starter, star delta decompression starter, and multiple derivative series products such as additional auxiliary contact groups, air delay heads, etc. can be combined according to the user's choice.
Product type: AC contactor
Number of poles: 3P
Auxiliary contact: 1NO+1NC
Rated voltage: 440VAC
Main contact: 3NO
Control circuit: AC 50/60Hz
Rated power: 7.5KW
Installation method: base plate/guide rail installation

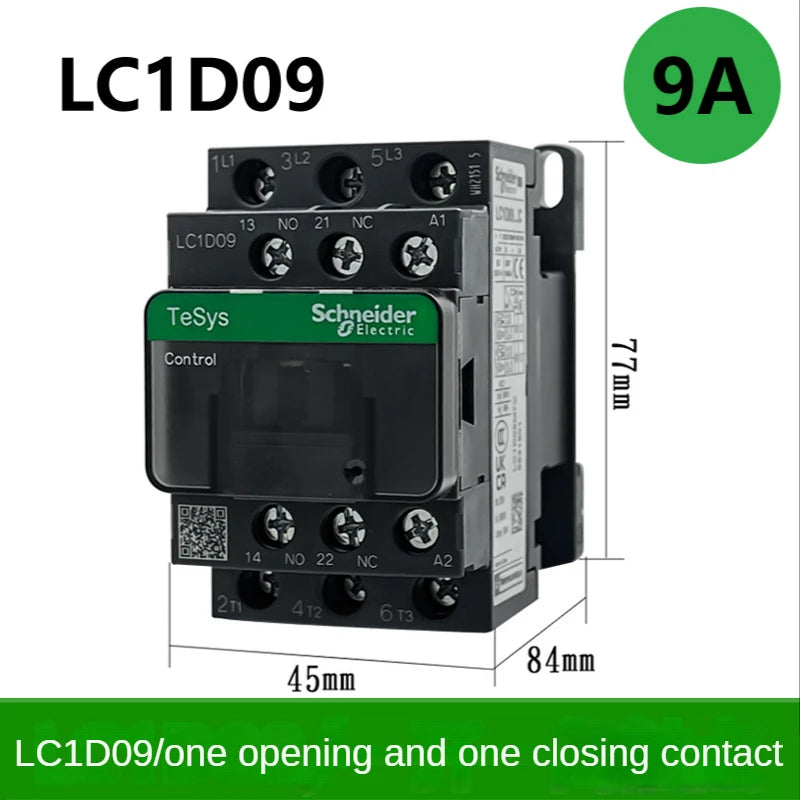

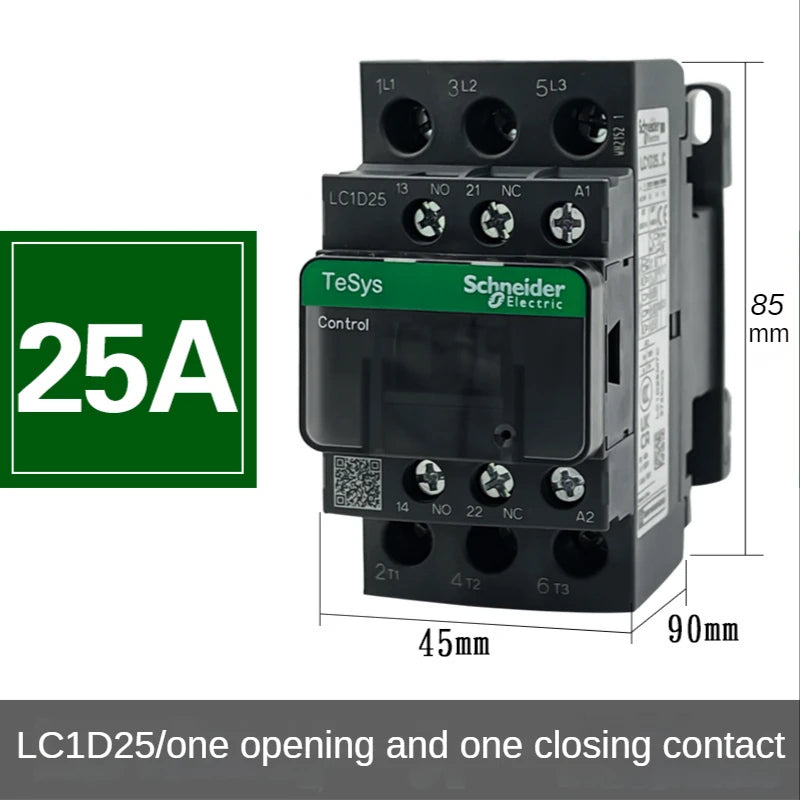

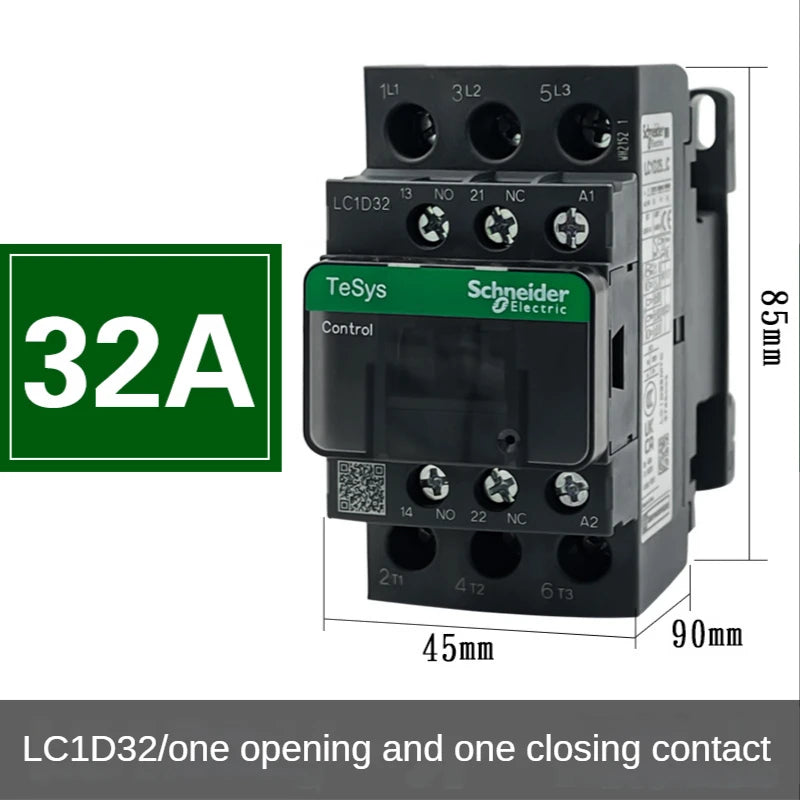

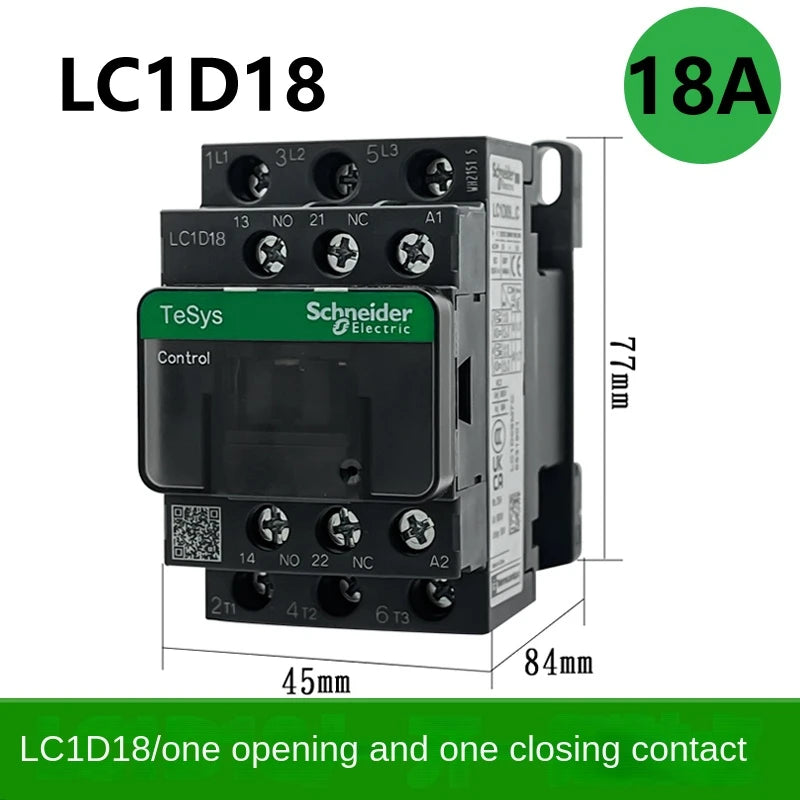

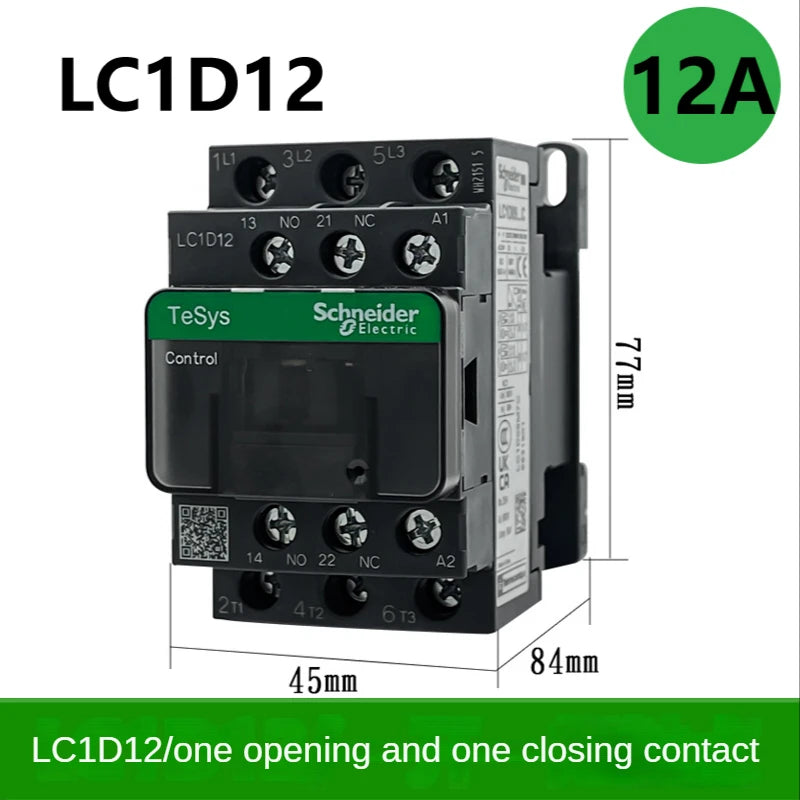

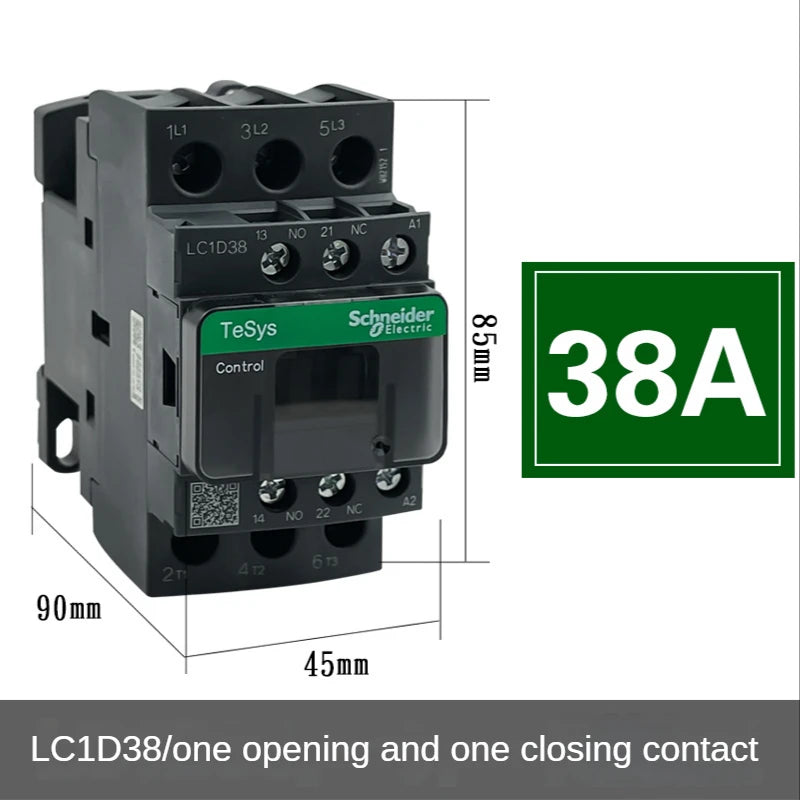

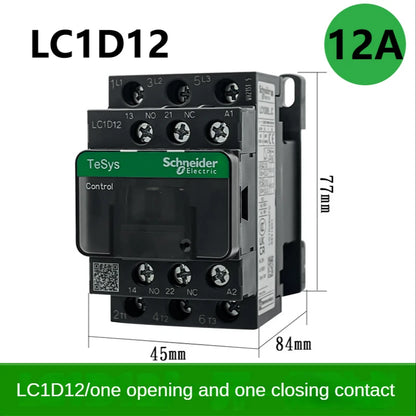

Product size introduction

Introduction to contactor appearance identification

Safe use of electricity, caring and guarding

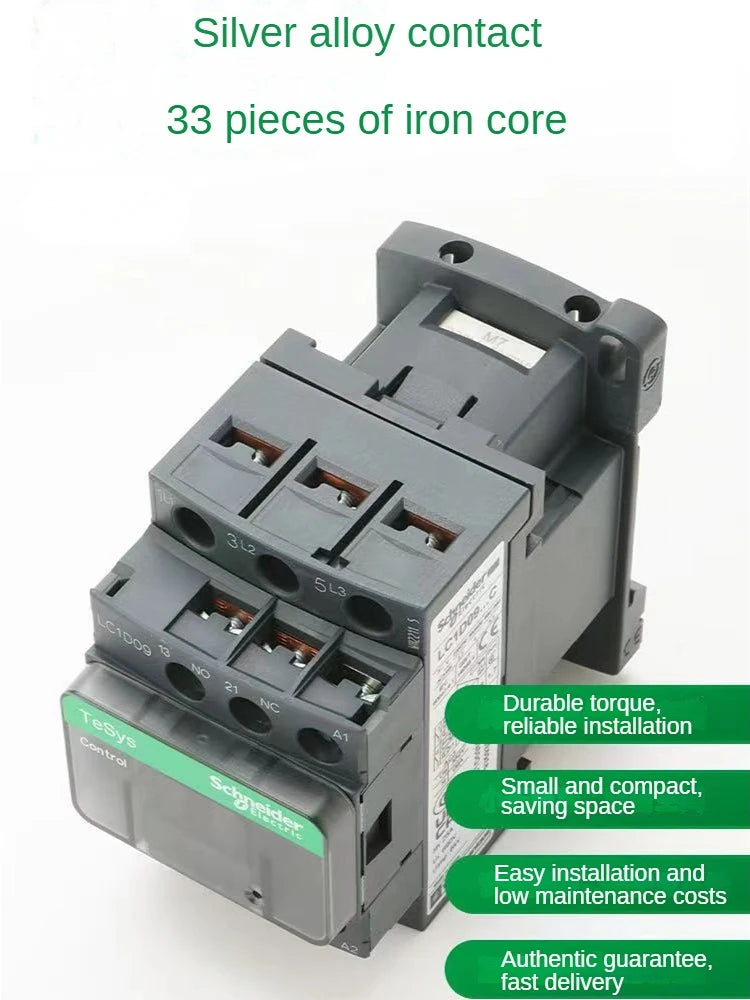

1. The product contains 33 iron cores for pull in protection,with strong conductivity and wear resistance
2. Red copper coil, with low power consumption, can carry more current
3.High flame retardant shell, well protected, safe for electricity use, fire retardant
4. The product is packaged independently, and the outside of the packaging box contains parameter information (1 piece/box)

Coil voltage wiring instructions

1. As shown in the figure, A1 A2 is the control coil wiring
2. If you need to determine the coil voltage, you can check the top of the product as shown in the picture to get the coil voltage of the product.
3. Take LC1D09M7C as an example for explanation.

45MM compact installation, highly centralized

Contactor wiring diagram

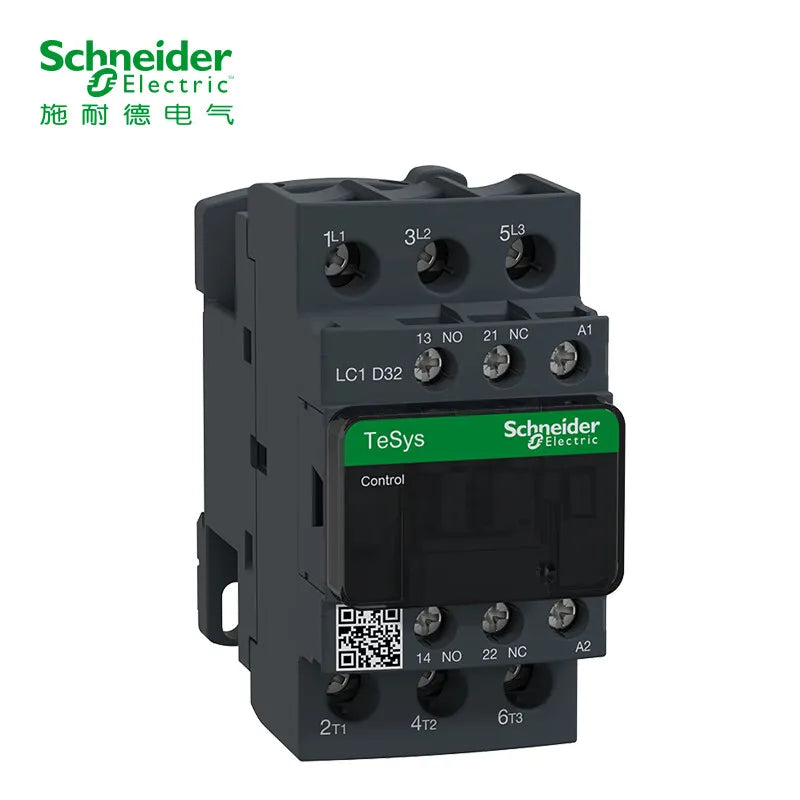

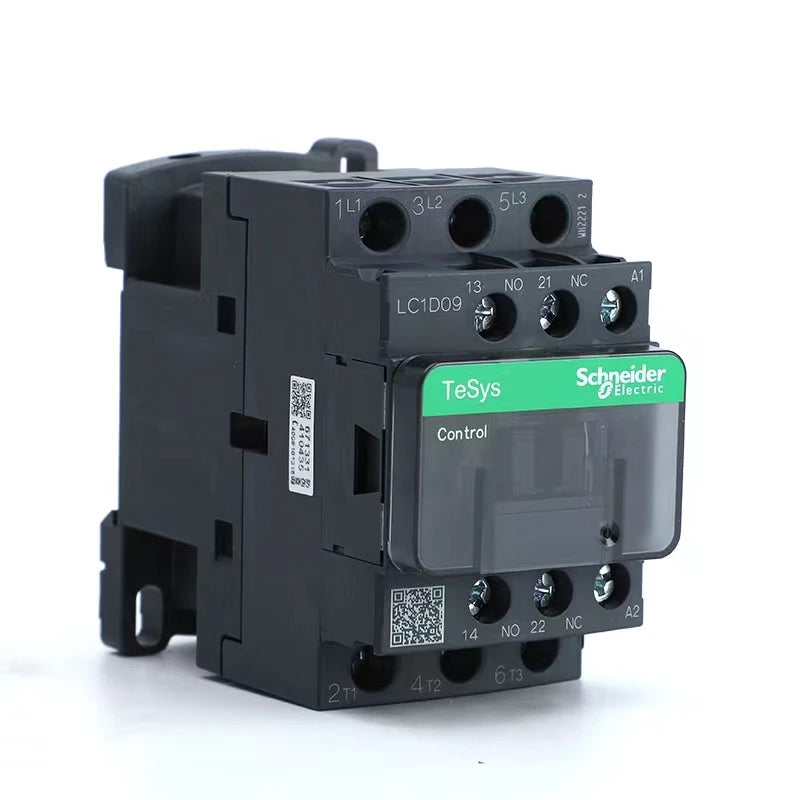

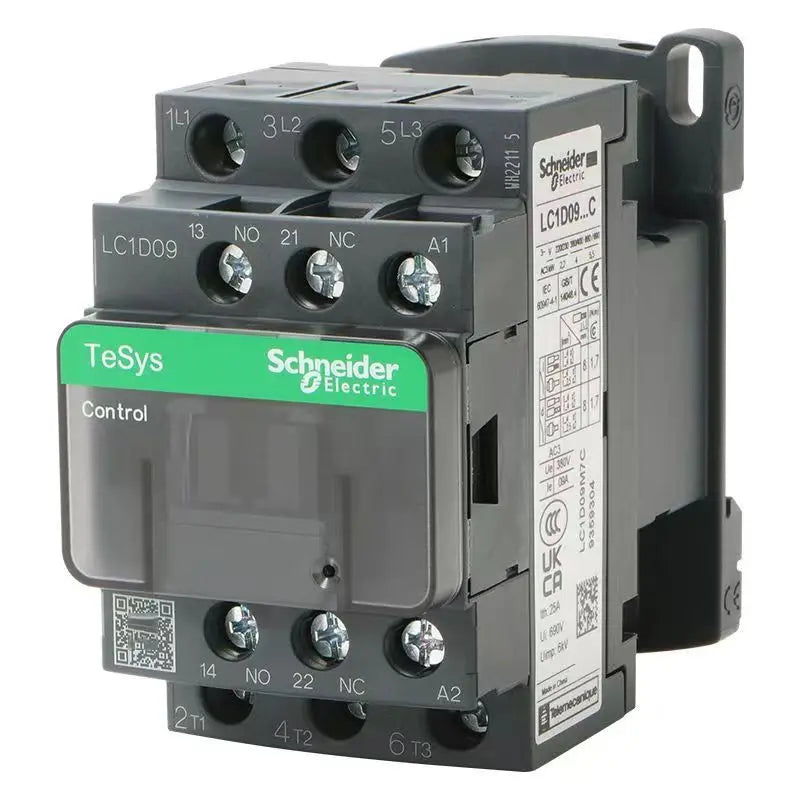

Product Photograph
