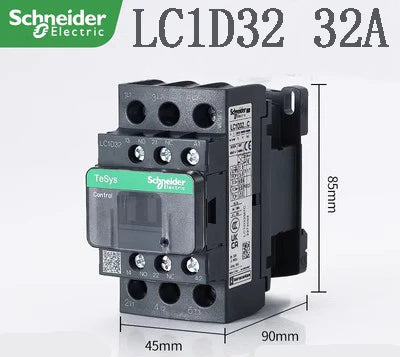

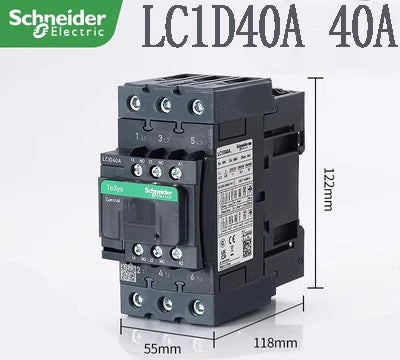

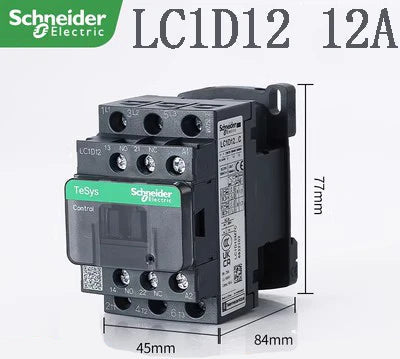

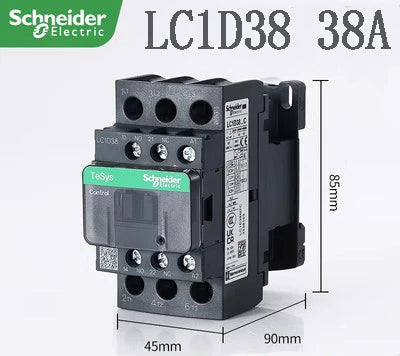

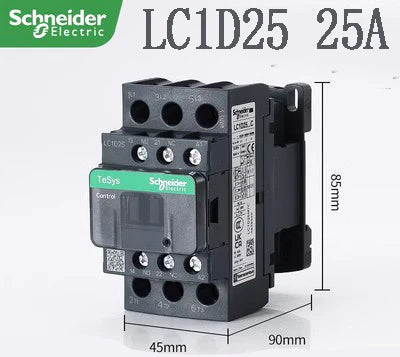

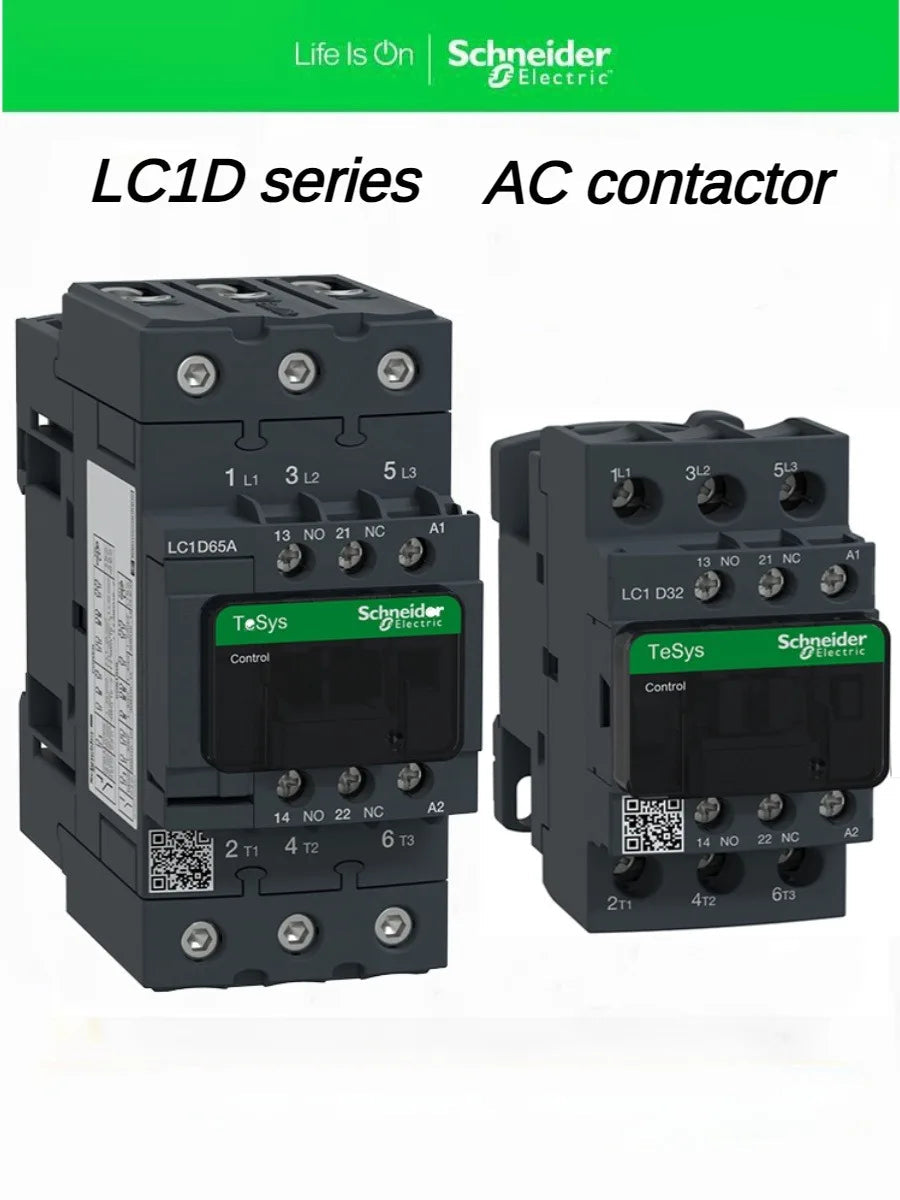

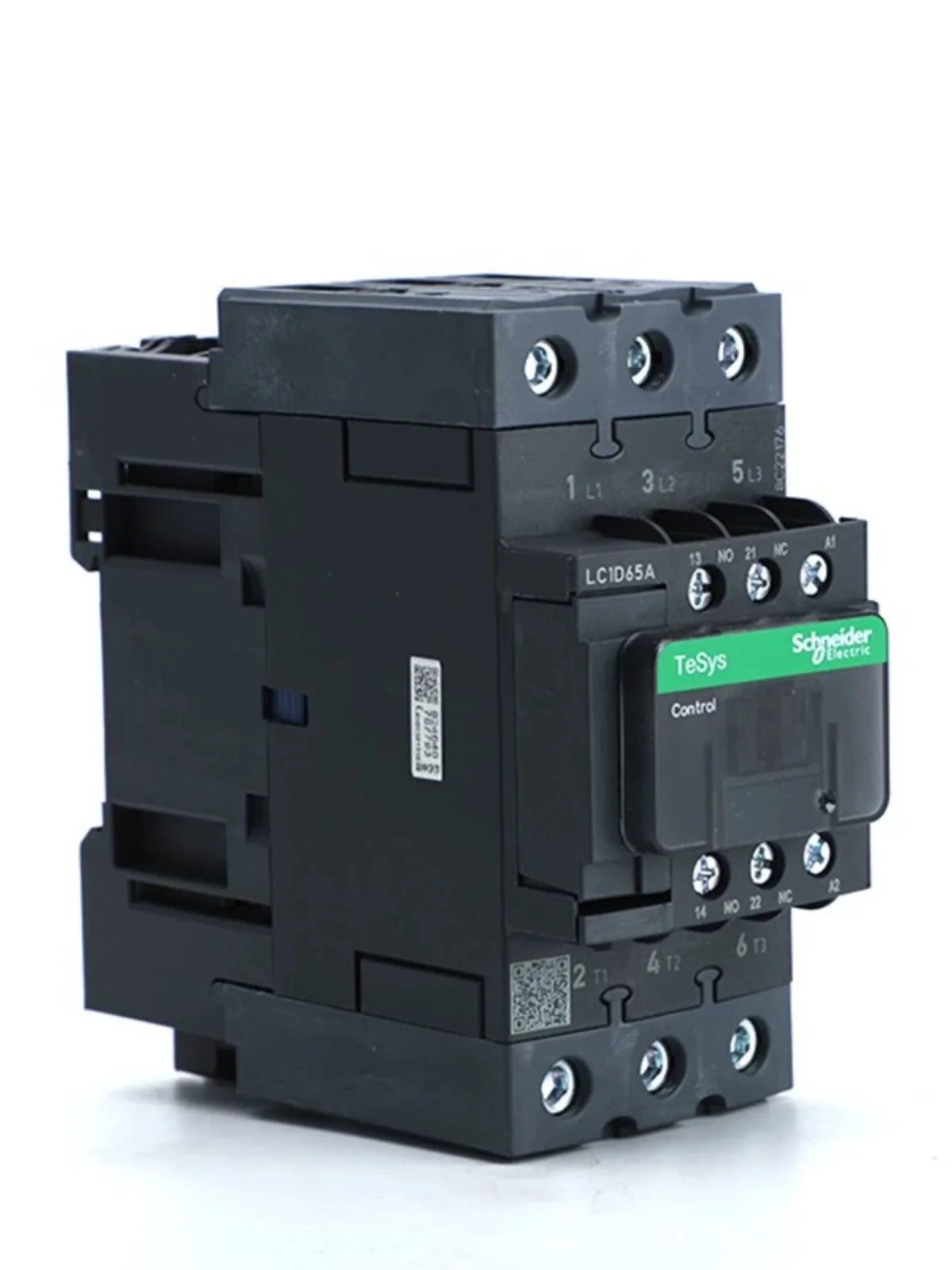

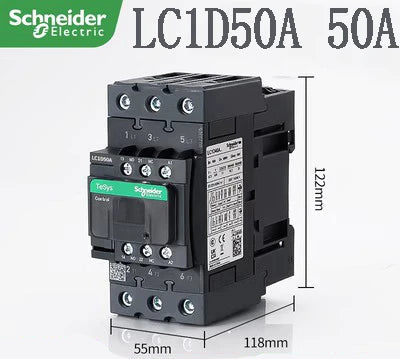

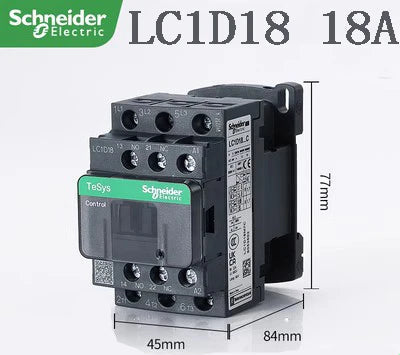

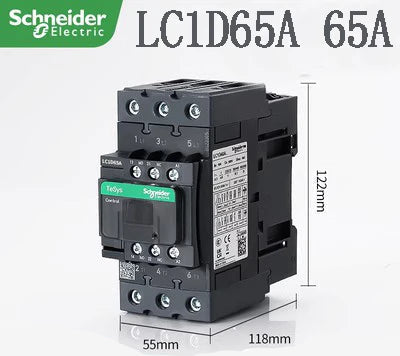

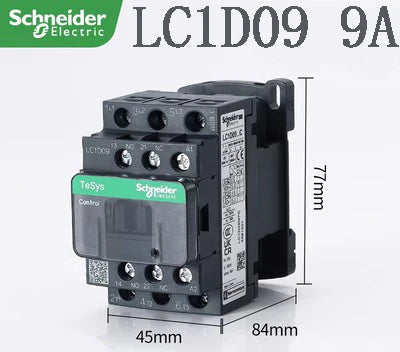

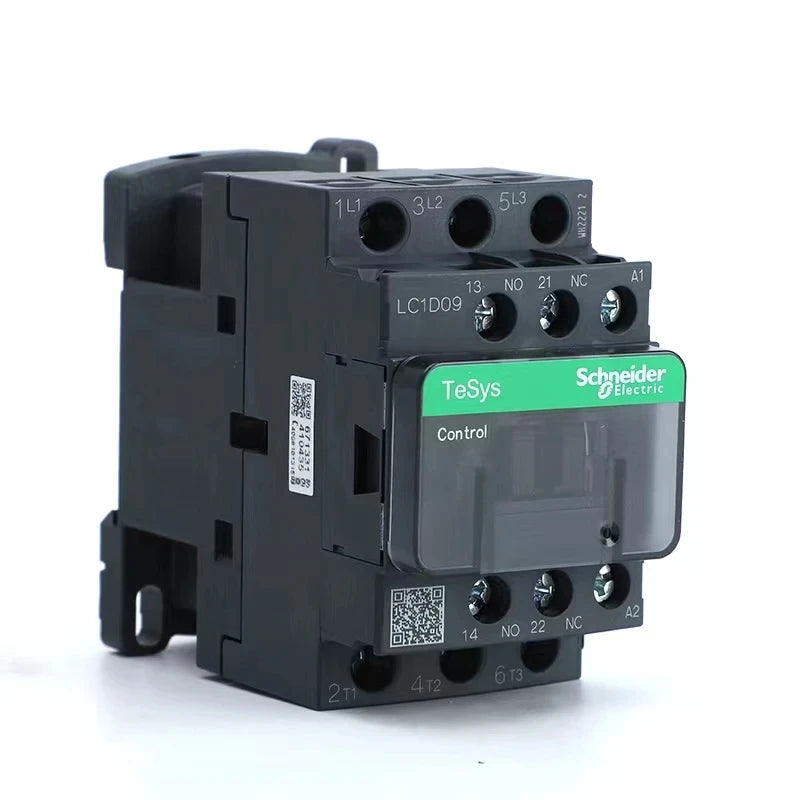

Main Range TeSys Range of product TeSys Deca Product or component type Contactor Device short name LC1D Contactor application Motor control Resistive load Utilisation category AC-3 AC-3e AC-4 AC-1 Poles description 3P [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz [Ie] rated operational current 9-65 A (at <60 °C) at <= 440 V AC-3 for power circuit 125 A (at <60 °C) at <= 1000 V AC-1 for power circuit 95 A (at <60 °C) at <= 440 V AC-3e for power circuit [Uc] control circuit voltage 24-380 V AC 50/60 Hz
[Ui] rated insulation voltage Power circuit: 1000 V conforming to IEC 60947-4-1 Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Signalling circuit: 690 V conforming to IEC 60947-1 Signalling circuit: 600 V CSA certified Signalling circuit: 600 V UL certified Overvoltage category III Pollution degree 3 [Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947 Safety reliability level B10d = 1.3 Mcycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20 Mcycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability 4 Mcycles Electrical durability 1.2 Mcycles 9-65 A AC-3 1.3 Mcycles 125 A AC-1 1.2 Mcycles 9-65 A AC-3e Control circuit type AC at 50/60 Hz standard Coil technology Without built-in suppressor module Control circuit voltage limits 0.8...1.1 Uc (-40…55 °C):operational AC 50 Hz 0.85...1.1 Uc (-40…55 °C):operational AC 60 Hz 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz 1...1.1 Uc (55…70 °C):operational AC 50/60 Hz Inrush power in VA 245 VA 60 Hz cos phi 0.75 (at 20 °C) 245 VA 50 Hz cos phi 0.75 (at 20 °C) Hold-in power consumption in VA 26 VA 60 Hz cos phi 0.3 (at 20 °C) 26 VA 50 Hz cos phi 0.3 (at 20 °C) Heat dissipation 6…10 W at 50/60 Hz Operating time 20...35 ms closing 6...20 ms opening Maximum operating rate 3600 cyc/h at 60 °C
