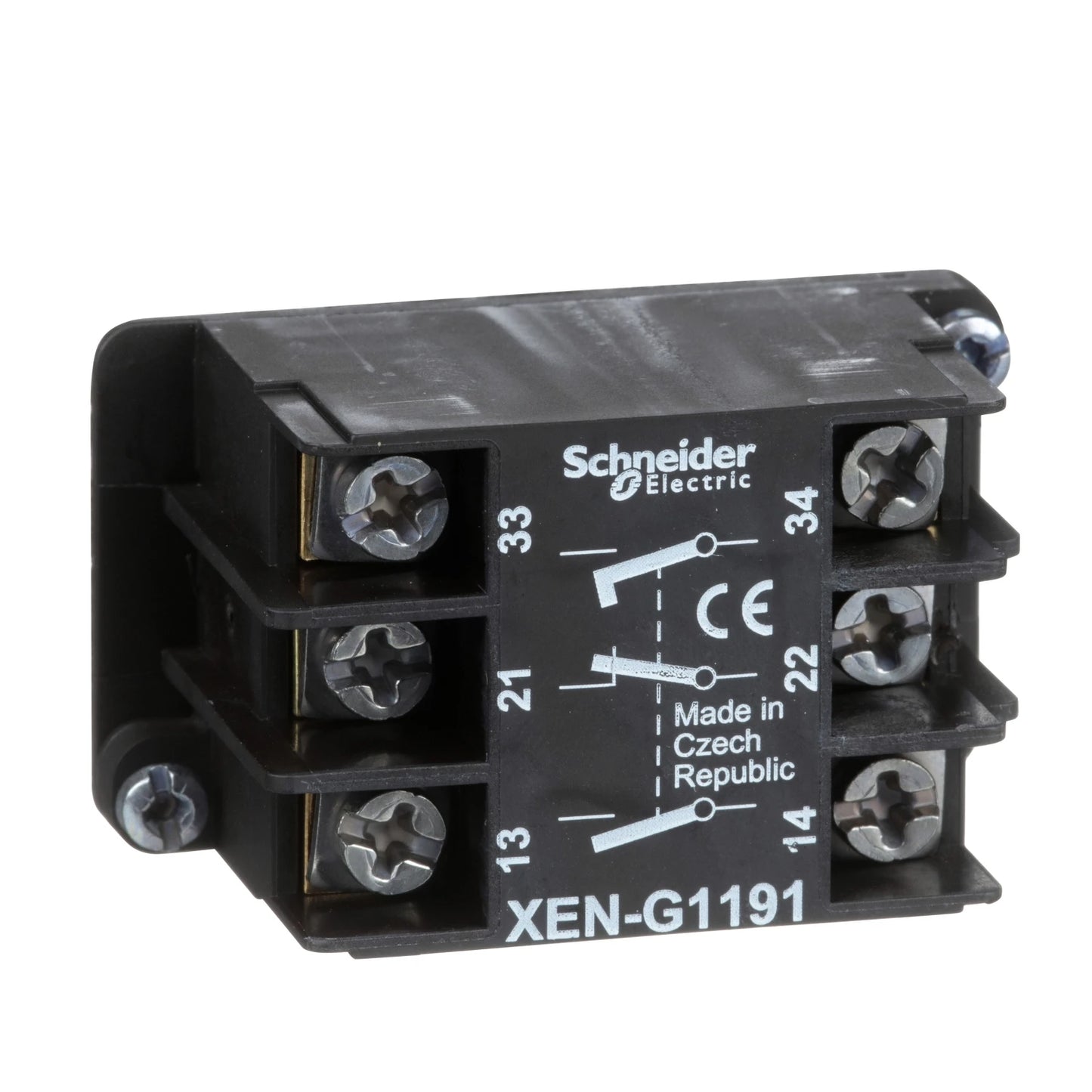

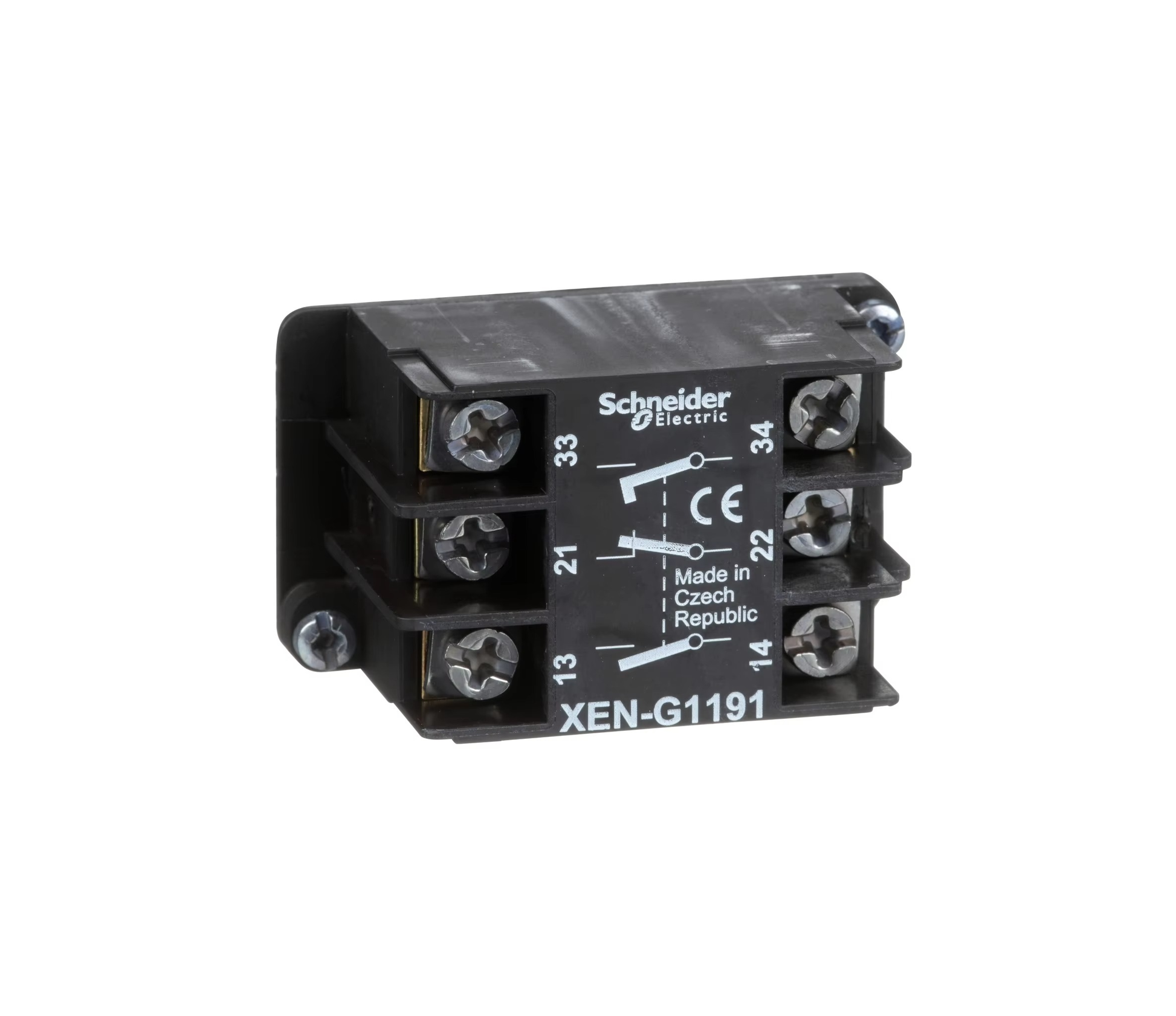

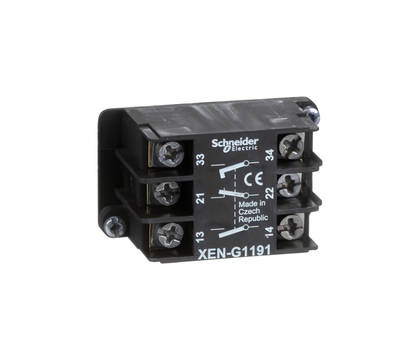

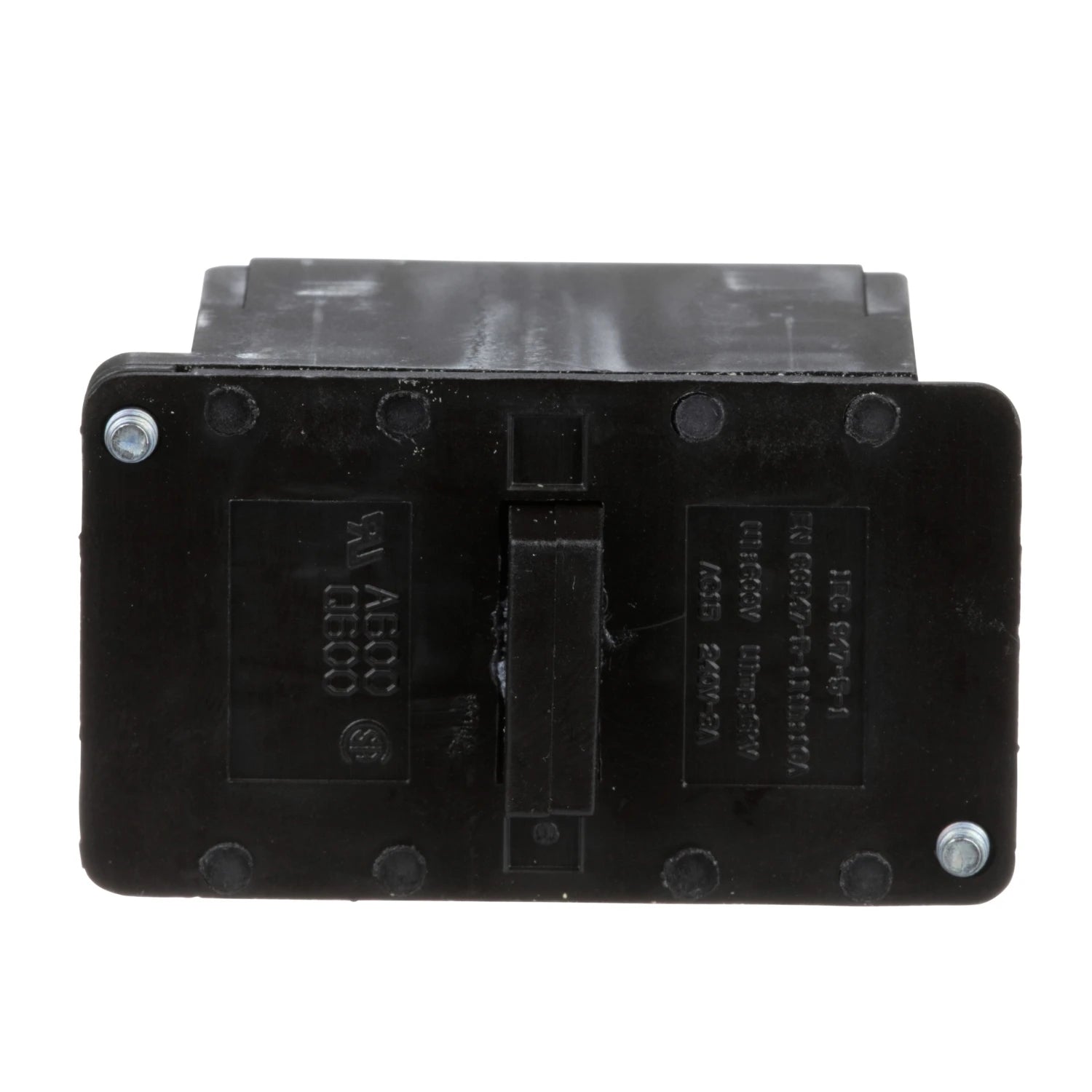

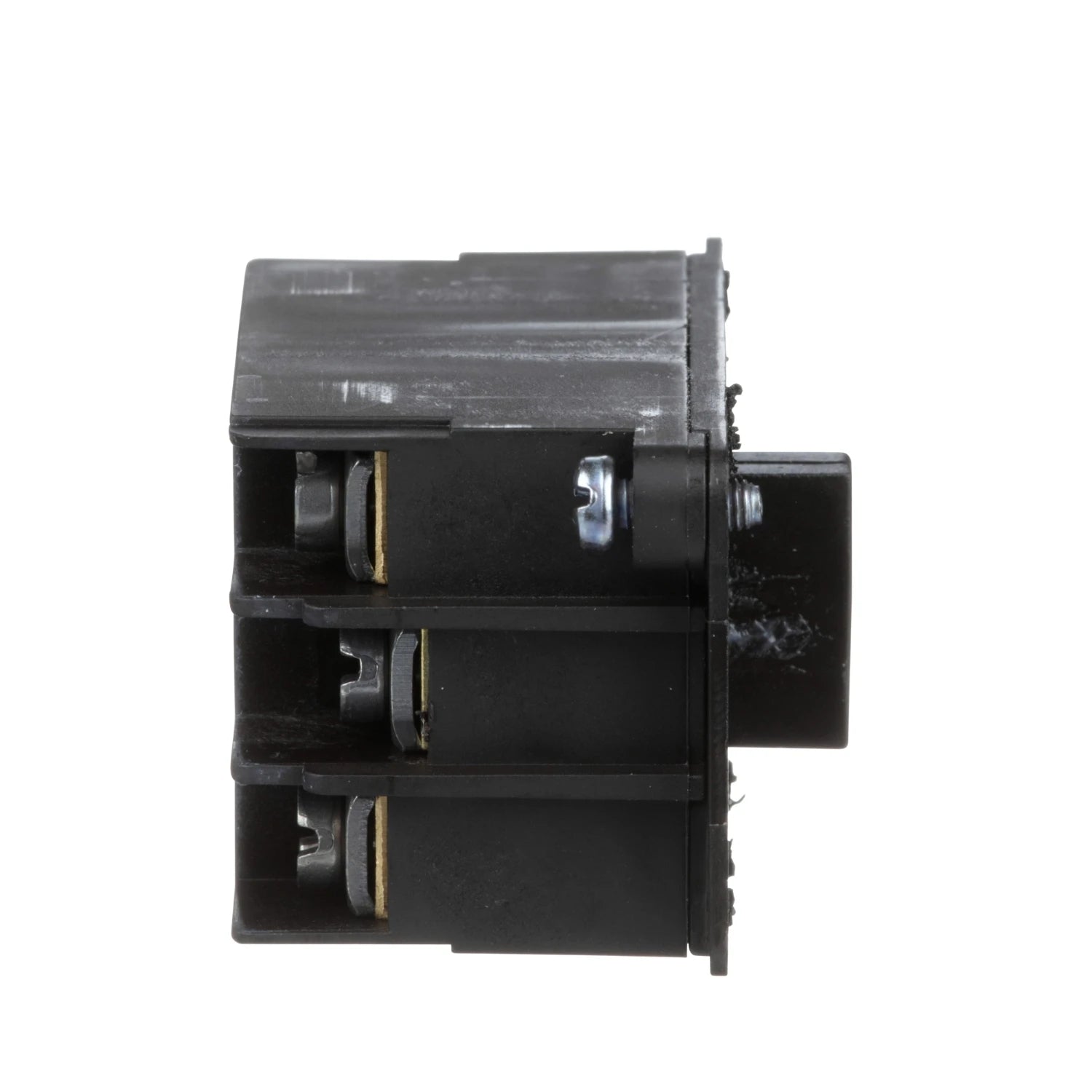

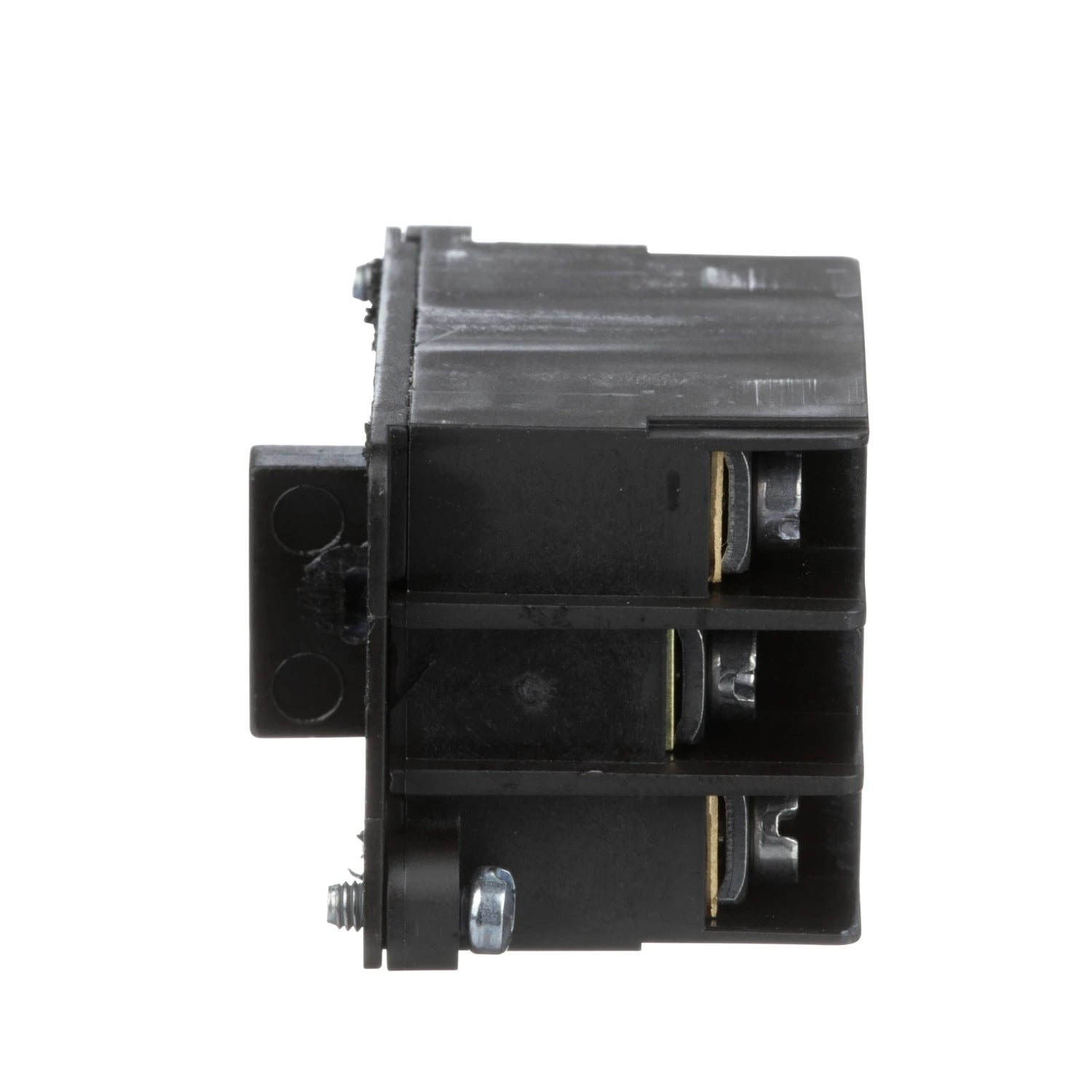

Schneider Double Pressure Contact Block XENG1191 - Sold in Quantity of 6x Contact Blocks

Main information

Product series
Harmony XAC
Product type
Contact module
Component name
XENG
Type of electrical circuit
Control loop
Contact application
two-speed
Contact type
single
Operator type
Spring return
Product application scope
XACA
XACA9… head
Contact type
1 NC + 2 NO
Function block installation
Front mounting
Contact action
Slow break
interlace
Supplementary information
Wiring capacity
Bolted, 1 x 0.5... 1 x 2.5 mm² without terminal
Bolted, 1 x 0.5... 2 x 1.5 mm² with terminal
Mechanical life
One million times
Contact line specified brand
A600 AC-15, Ue = 240 V, Ie = 3 A complies with Appendix A of IEC 60947-5-1
A600 AC-15, Ue = 600 V, Ie = 1.2 A complies with Appendix A of IEC 60947-5-1
Q600 DC-13, Ue = 250 V, Ie = 0.27 A complies with Appendix A of IEC 60947-5-1
Q600 DC-13, Ue = 600 V, Ie = 0.1A complies with Appendix A of IEC 60947-5-1
Conventional closed heating current [Ithe]
10 A
Rated insulation voltage [Ui]
600 V (pollution level 3) in accordance with IEC 60947-1
Rated impulse withstand voltage [Uimp]
6 kV in accordance with IEC 60947-1
Maximum resistance across terminals
25 MΩ
Controlling force
18 N
Short circuit protection
10 A fuse protection by fuse fuse type gG
Rated operating power (W)
40 W DC-13 for 1000000 times, working rating <60 times/min in... At 120 V, the load factor = 0.5 (inductive load load) conforms to Appendix C of IEC 60947-5-1
48 W DC-13 for 1000000 times, work rating <60 times/min in... At 48 V, the load factor = 0.5 (inductive load load) conforms to Appendix C of IEC 60947-5-1
65 W DC-13 for 1000000 times, working rating <60 times/min in... At 24 V, the load factor = 0.5 (inductive load load) conforms to Appendix C of IEC 60947-5-1

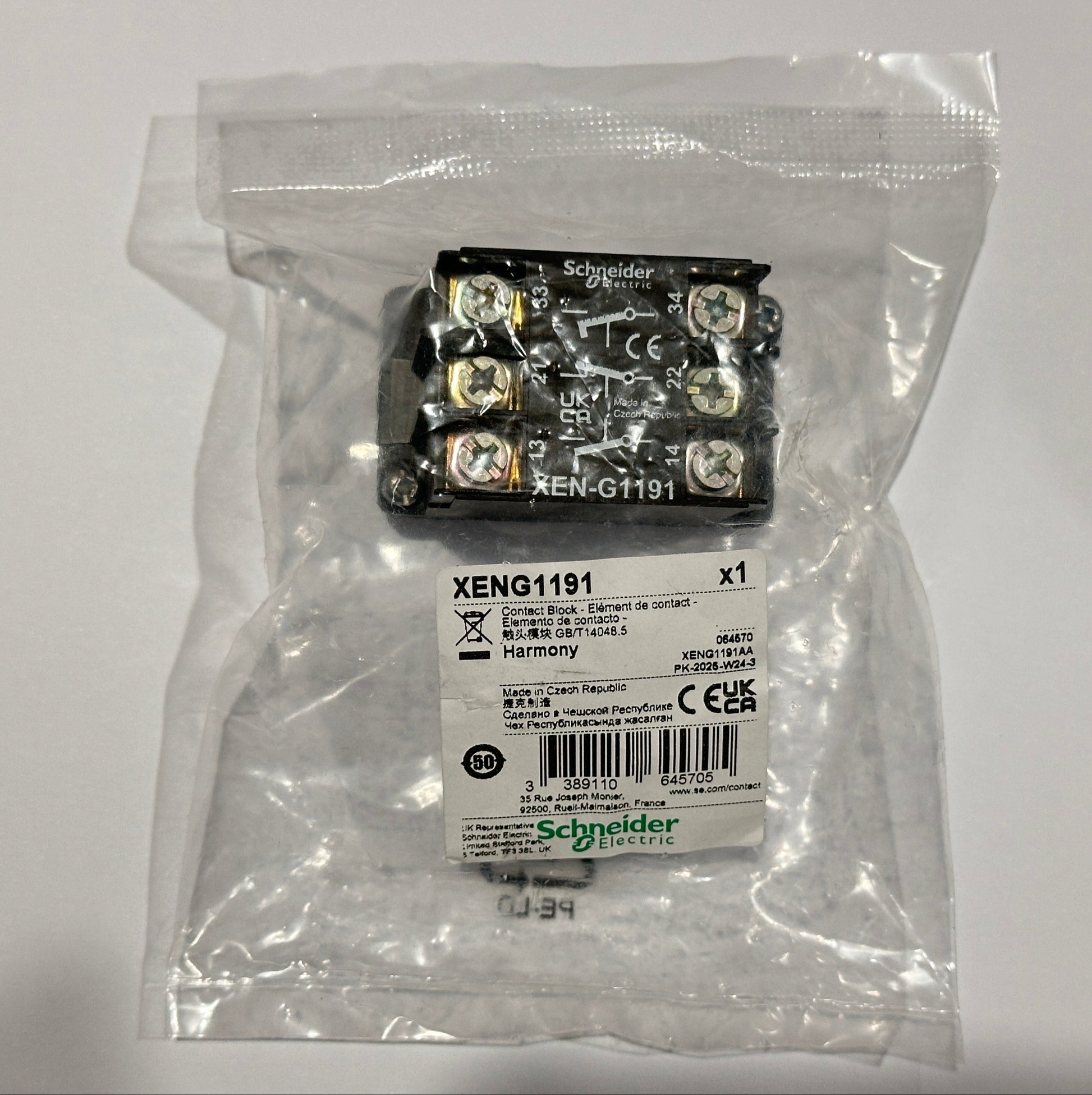

ISO n°1 terminal
(21-22)NC
(33-34)NO_CL
(13-14)NO
Net weight
0.04kg
environment
Meet the standard
UL 508
IEC 60947-5-1
CSA C22.2 No 14
Operating temperature
25... 70 °C
Storage ambient temperature
- 40... 70 °C
Vibration resistance
15 gn (f= 10… 500 Hz) conforming to IEC 60068-2-6
Impact resistance
100 gn conforms to IEC 60068-2-27
Type of overvoltage
Class II conforming to IEC 61140
